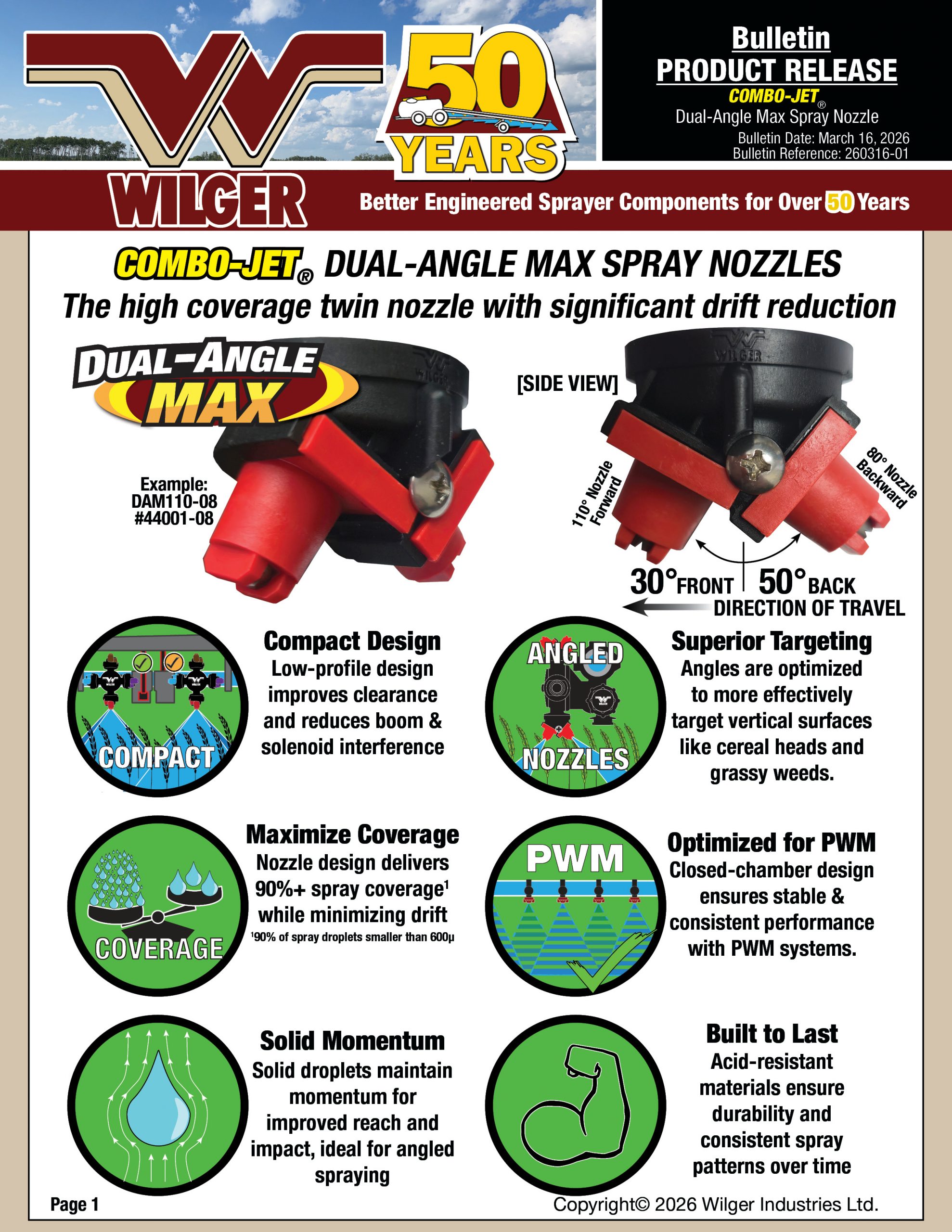

Dual Direction. Maximum Coverage.

Wilger is proud, in our 50th anniversary year, to introduce the new COMBO-JET® Dual-Angle Max (DAM) nozzle series.

Designed to improve spray deposition on vertical and complex crop targets, the Dual-Angle Max series produces a catered medium-coarse spray quality while maintaining two opposing spray angles: 30° forward & 50° backward.

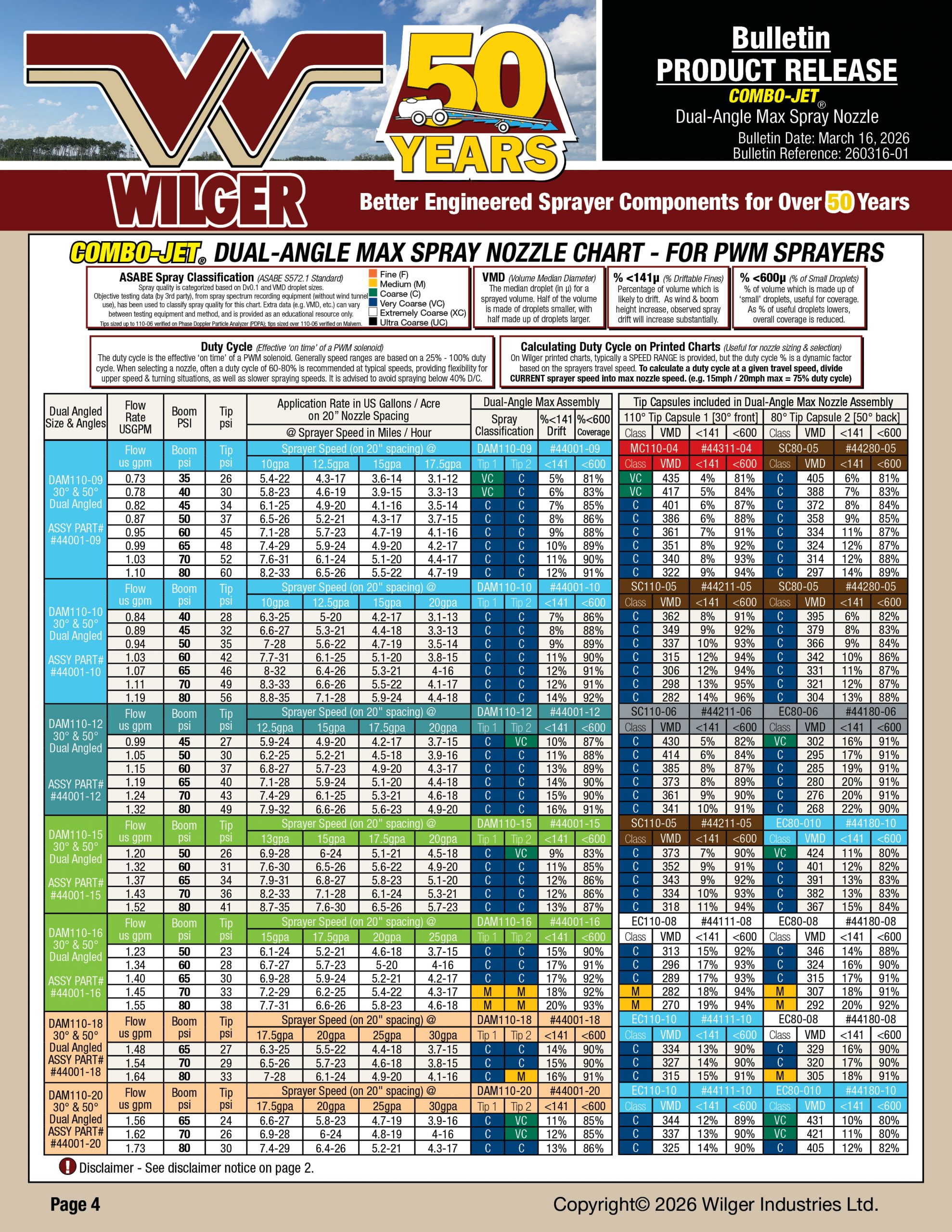

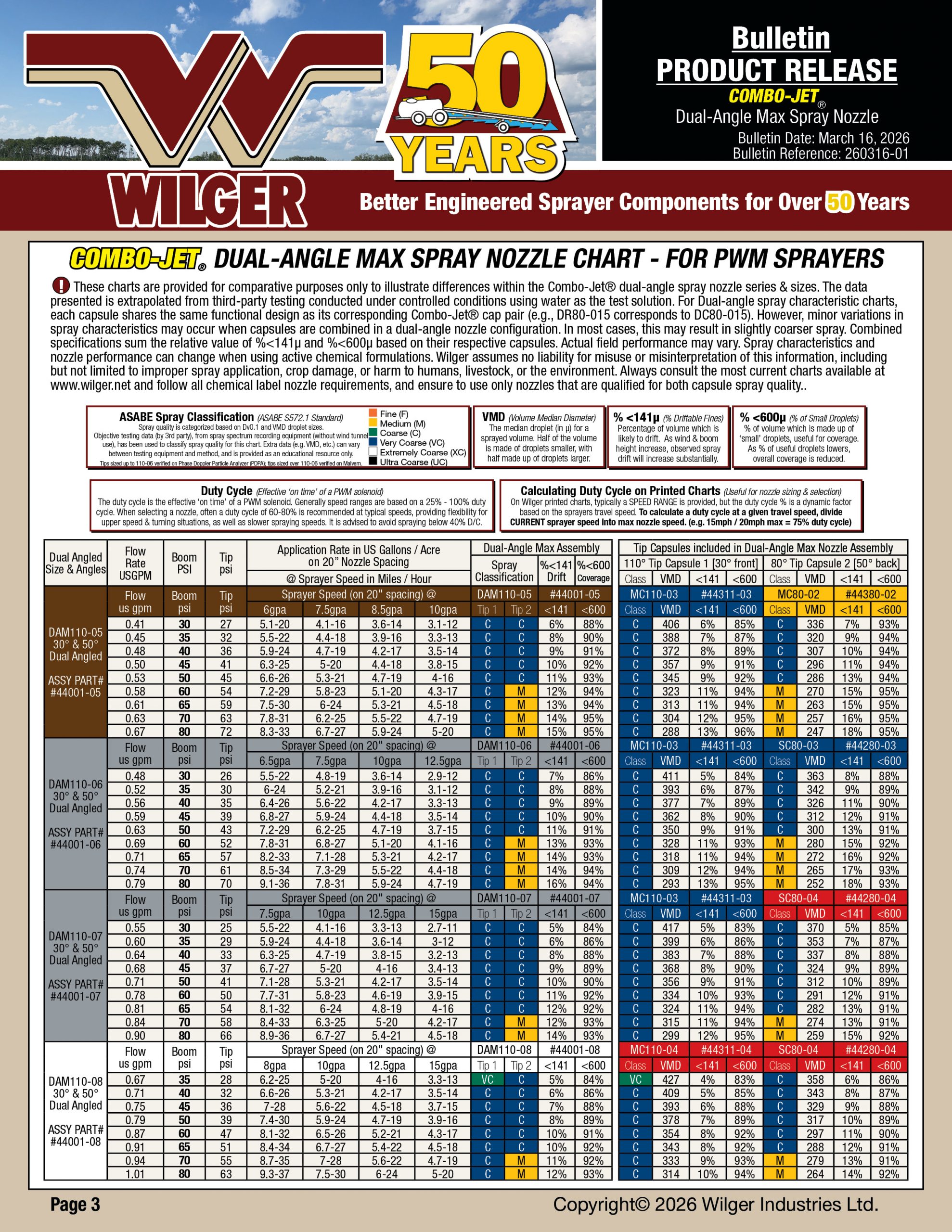

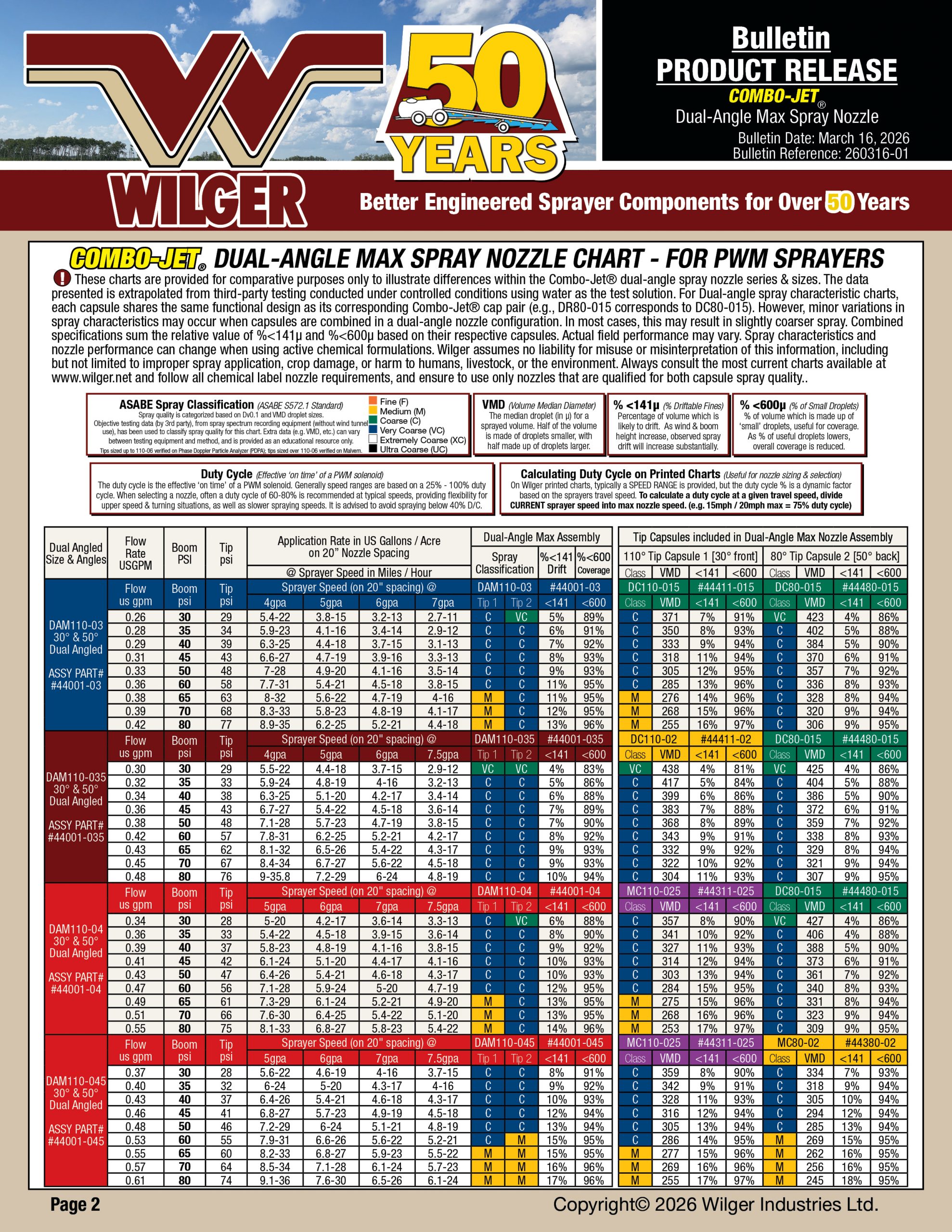

If you are familiar with Wilger nozzle charts, the DAM110 series is design to maintain coverage factor (%<600µ) of 90% or higher, even for high rate applications like fungicides.

This dual-direction spray pattern increases the effective spray volume reaching vertical growing targets, making it ideal for applications such as:

• Cereal Headblight application (e.g. fusarium headblight)
• Small, grassy weed control
• Dense crop canopies (keep your boom low)
• Targeted desiccation applications where top-canopy coverage is critical
• High volume applications where a single nozzle becomes too large and coarse to be effective.

By attacking the target from two directions, the DAM110 series improves coverage in complicated real-life situations where single nozzles spraying straight down can miss.

Built on proven COMBO-JET Performance

The Dual-Angle Max series delivers an excellent balance of spray quality thanks to its ability to use COMBO-JET slide-in capsules to create the perfect sweet spot for coverage while minimizing drift significantly. If you find you are suffering from a lack of coverage, look at the Dual-Angle Max.

This means applicators benefit from the same trusted spray performance they’ve come to rely on with other COMBO-JET nozzles, while gaining the added advantage of dual-angle coverage, and much more compact form factor of the new dual-cap design.

COMPACT Dual-Angle Nozzle for the Modern Sprayer Boom

Noticing your sprayer boom seems to have more things going on and less room for spraying equipment? The Dual-Angle max series is a compact dual cap. It takes up a great deal less space than any angled nozzle adapters, freeing up much needed space around your nozzle body.

Specifically with our Dual-Spray 4+1 (DS41) nozzle bodies, it significantly reduces boom and solenoid interference. (NOTE: there is some interference with larger solenoids mounted on “LEFT” DS41 nozzle bodies due to the fixed dimensions of the solenoid, but the ability to rotate the turret is greatly improved even in those situations).

Fully Customizable Spray Configuration

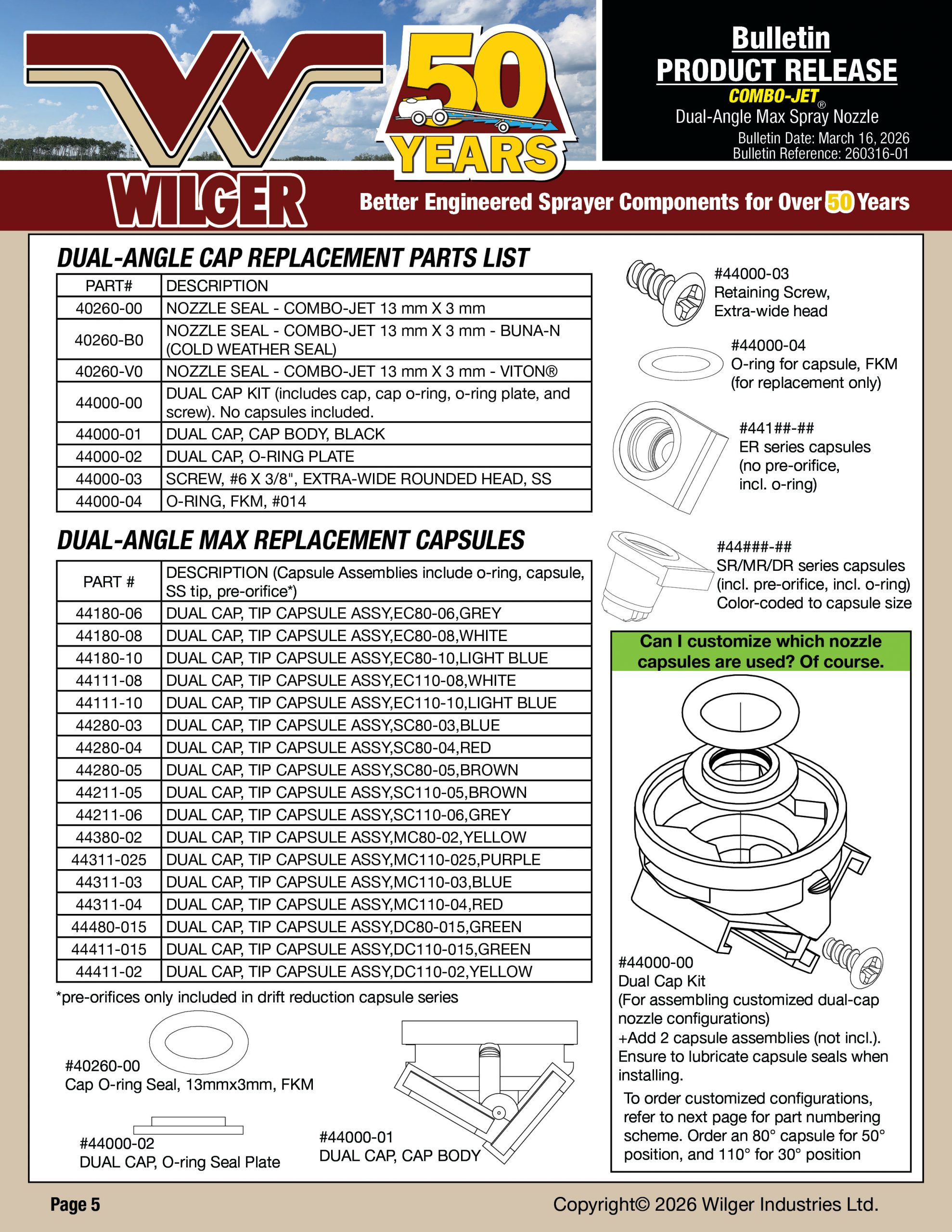

One of Wilger’s key goals is to empower spray applicators to improve how they spray. Often this meant using adapters made by Wilger to change HOW we spray (e.g. using double-down adapters, or angled adapters). With that core vision in mind, we also ensure spray applicators can customize their Dual-Angle MAX spray nozzles as well. The dual-cap can be dissassembled and the capsules swapped with other series (using the same COMBO-JET series and sizes in dual-cap capsule form), or a user can buy the #44000-00 dual-cap kit as well as the two nozzle capsules (based on normal ER/SR/MR/DR and 80°/110° and size format).

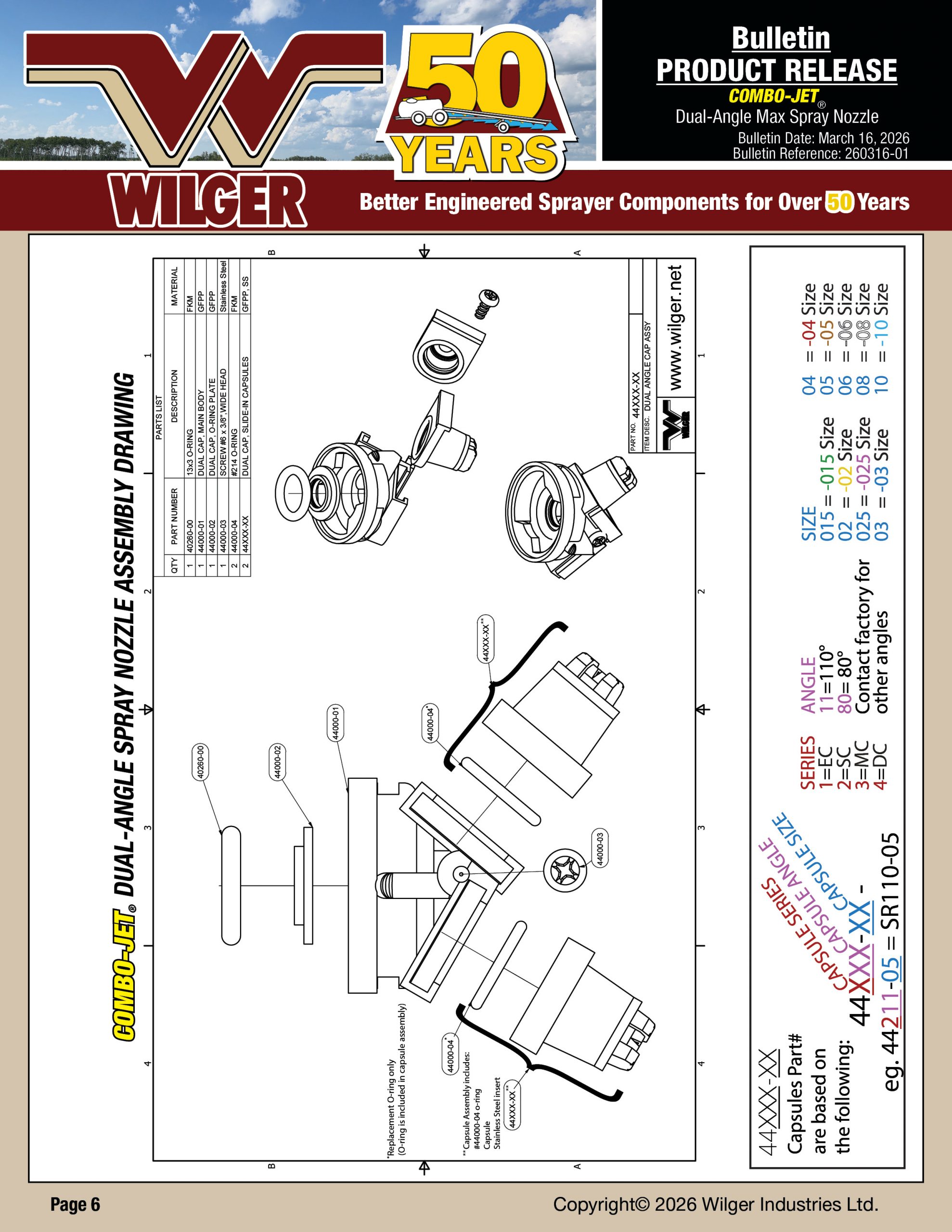

Refer to the bulletin for the part number scheme for customizing nozzle capsule.

Being able to customize a dual-cap nozzle provides limitless ability to change HOW we spray, with a much more compact package. We can customize nozzle sizes for even tighter nozzle selection, change spray qualities forward or backward to address real life conditions and more.

You can design your own nozzle that could perform better in your real life conditions, one better than any you have ever seen.

Spray Better with Dual-Angled Coverage

The COMBO-JET Dual-Angle MAX (DAM series) represents Wilger’s continued commitment to helping farmers and applicators spray smarter, achieve better coverage, and maximize every pass across the field.

Learn more about the Dual-Angle MAX series on the website or talk to your Wilger dealer today.
